Sewer pipe lining in Paterson

The pipe beneath Paterson streets

Sewer laterals in Passaic County were laid in layers, one building boom at a time. The oldest blocks, built between the 1880s and the 1930s, drain through vitrified clay in short sections with mortar or hot-poured joints, and in a few of the earliest districts through brick channels that were never meant to carry a modern household. Cast iron took over under basement floors and in the first ring of suburbs, and it rusts from the bottom up where water sits. Tracts built between 1945 and 1970 often got Orangeburg, a bituminized wood-fiber pipe that softens, deforms and delaminates once groundwater reaches it. PVC became standard after the 1970s and holds up well unless a joint was glued poorly or fill settled beneath it. Over all of this sit sycamores, maples and oaks planted along the curb decades ago, whose roots follow the moisture leaking from every open joint.

How a liner is installed

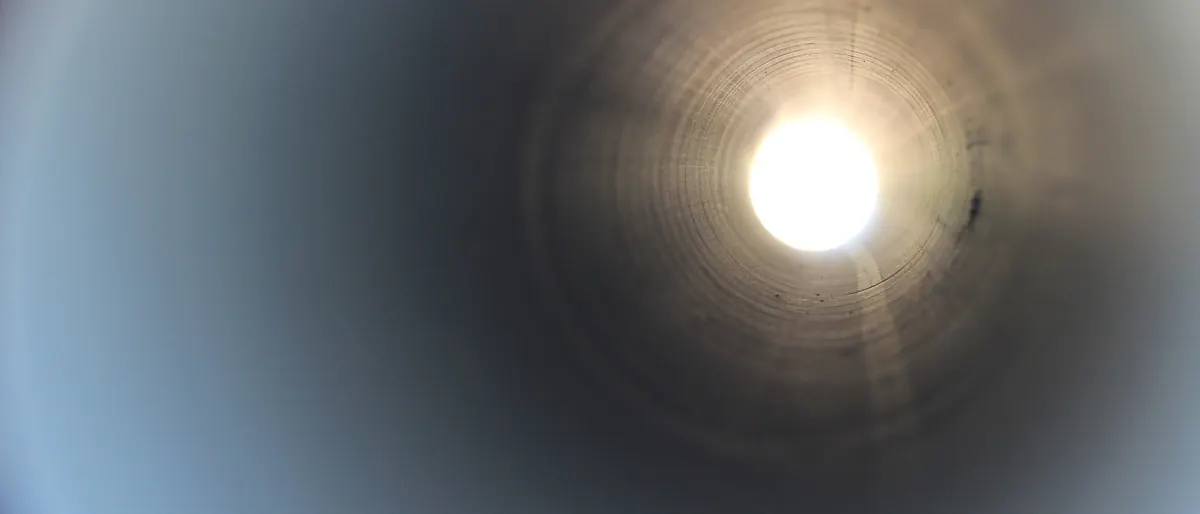

Cured-in-place pipe, usually shortened to CIPP, is a new pipe formed inside the existing one. After the camera survey and a thorough jetting, a felt or glass-fiber tube is impregnated with epoxy or polyester resin, then either inverted with air or water pressure or winched into position. Once it is pressed tight against the host pipe, hot water, steam or an ultraviolet light train hardens the resin. What remains is a continuous, jointless pipe with a smooth bore, bonded to the old wall and independent of it structurally. Roots lose their entry points, groundwater stops leaking in, and sewage stops leaking out into the soil around the foundation.

Everything goes in through a cleanout in the basement or a small access pit, so the sidewalk, the planting strip and the pavement stay intact. The installer covering Passaic County, the verified installer covering Paterson, works through that opening and has the line back in service the same day on most residential jobs.

Where lining stops and bursting begins

A liner follows the shape of whatever it is installed in, so the host pipe must still be round and still hold its grade. Collapsed clay, Orangeburg that has gone flat, a section crushed by a settling retaining wall, or a long low spot where water pools are not candidates. Those lines are replaced by pipe bursting, which pulls a conical head through the old pipe to fracture it while dragging in new high-density polyethylene behind. Both approaches are compared in plain language at the CIPP reference, and a contractor who proposes one before looking at the video is guessing.

Ownership, permits and the public right-of-way

Who pays for the stretch between the curb and the main differs from one municipality to the next across New Jersey. Some towns take responsibility from the curb line outward; many hold the property owner accountable all the way to the connection at the main. The contractor confirms the rule for Paterson before quoting so the proposal matches what you actually own. Permitting usually means a municipal plumbing permit, a road-opening permit for any work in the right-of-way, and a separate state DOT permit when the lateral crosses a state highway. Lining keeps most jobs out of the street entirely, which is often the single largest saving.

Infiltration, combined sewers and why the town cares

The older cities in this territory still run combined systems that carry stormwater and sewage in the same pipe. Every cracked lateral is a drain for groundwater, and in a wet winter or a spring thaw thousands of leaking laterals add clear water that the treatment plant has to handle and that contributes to overflows. That is one reason a growing number of towns now require a sewer inspection at point of sale, and why some will not sign off on a resale until a failed lateral is lined or replaced. A properly installed liner is the fix those programs are looking for.

Getting an honest proposal

Ask for the inspection recording and a written summary that marks each defect by footage before any price is discussed. Ask which method is proposed and why, how the cure will be verified, and what the warranty covers. Verified installers are listed at the verified installer directory, with the standards they are held to. The first conversation costs nothing, and the camera visit tells you whether you are facing a one-day liner or something larger.
